Peristaltic dosing pump IF3 Laboratory Peristaltic Pumps

Features

  • Servo motor drive
  • High precision
  • Low pulsation dispensing peristaltic pump
  • Adaptive pressure tubing space, extend the tubing lifetime effectively
  • Achieving high precision dispensing of micro flow rate
  • New flow rate mode, can be used for continuous transferring
  • Can communicate with balance, closed-loop control
  • Touchscreen and Mechanical keypad
  • 304 stainless steel drive housing
  • CE and SGS Certification
  • Industrial grade 4.3" colod LCD display
  • Flow rate range: 0,1 - 4'340 ml/min
  • Speed range: 1 - 350 rpm
  • Foot pedal switch
  • 2 years warranty


Typical Application

  • Dispensing small volume diagnostic reagent

Dosing pump IF3

Dosing range

0.1- 5'000 ml

Speed range

1 - 350 rpm

Outlet pressure

3 bar

Dosing accuracy

+/- 1%

Motor type

Servo motor

Screen

LCD colour screen

Input

Touch screen and mechanical keypad

Back suction

Yes, to prevent dripping

Energy supply

AC 220V ±10%, 50Hz

Communication interface

RS232/RS485

Protection class

IP31

Pump weight

8 kg

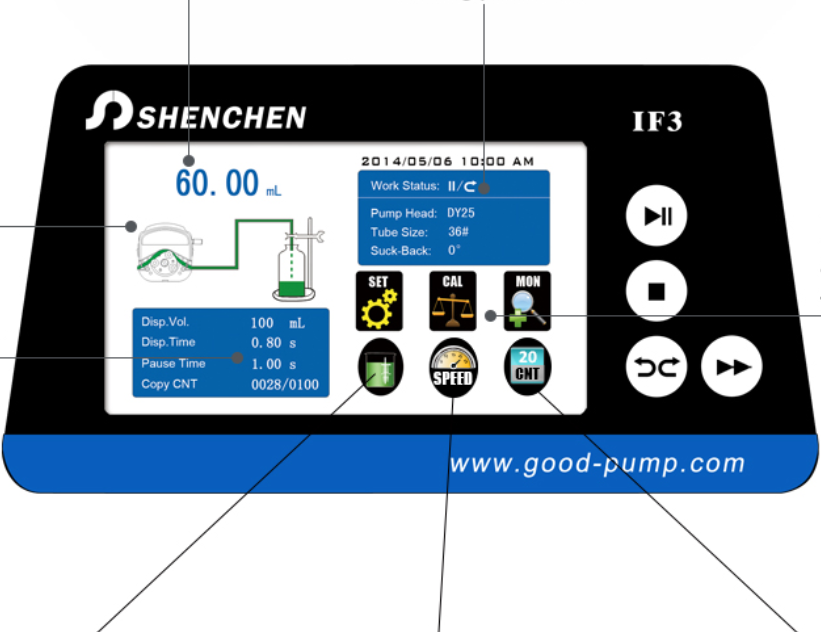

Display

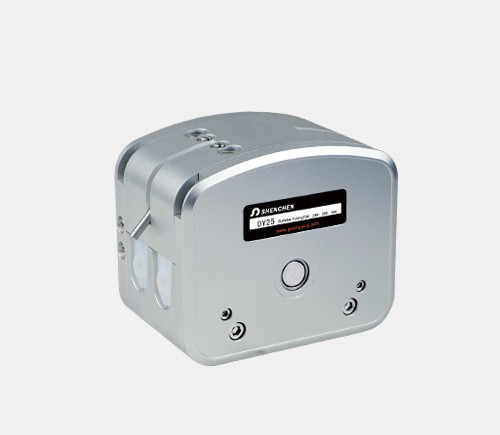

Pump head


Filling range

Pump

Motor

Pump head

Tube dimension (inner diameter
 Ø mm)

Filling range

IF3

Servo

DY15

0,8 / 1,6 / 2,4 / 3,1 / 4,8 / 6,4 / 7,9

0,1 – 3337 ml/min

DY25

4,8 / 6,4 / 7,9 / 9,6

4,2 - 4340 ml/min

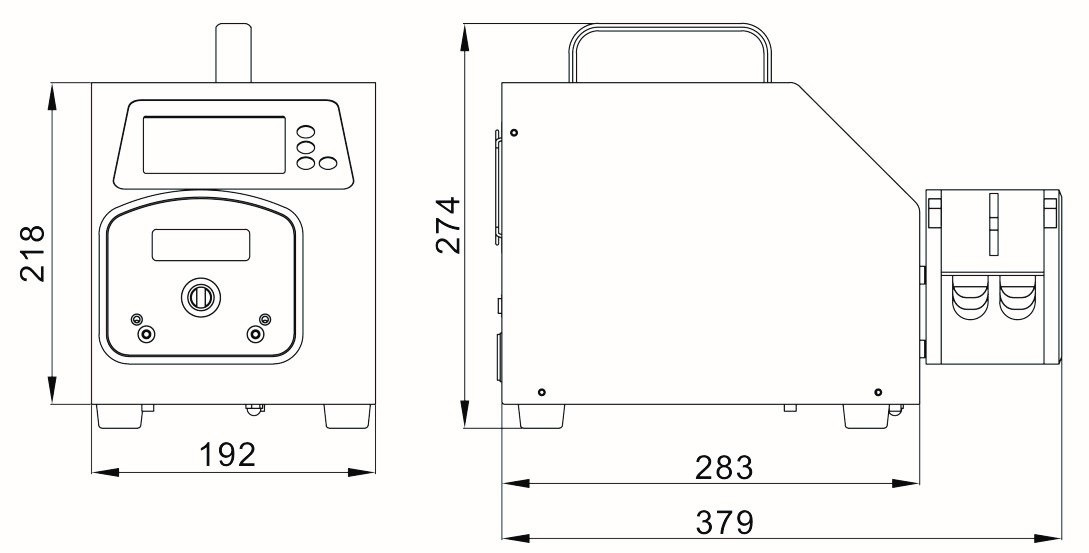

Dimensions in mm

Standard accessories

  • Power Line
  • Manual
  • Silicone Tubing


Optional Accessories

  • Handling dispenser
  • Foot pedal switch
  • Filling nozzle
  • One-way Valve
