A very compact and easy to use laboratory pump.
The LabQ laboratory peristaltic pump is ideally suited for continuous dosing applications. The pump has a compact design, is made of ABS plastic housing, is rustproof and antistatic. The flow rate is stable and the working situation of the tube can be easily observed through the transparent head. The peristaltic pump has a low power consumption and is also low-noise. The speed is controlled by the digital knob and with the memory back up, the user setting is saved if power is lost.
Properties of LabQ laboratory pump:
- Laboratory applications
- Simple applications
- flow rate up to 326ml/min
- 2 years warranty
|
Laboratory pump LabQ |
|
|
Flow rate range |
0,033 – 326 ml/min |
|
Speed range |
0,1 – 350 U/min |
|
Display |
2,4 ″ LCD Display |
|
Control method |
Mechanical keypad |
|
Power supply |
230V AC |
|
External control |
0 - 5V, 0 - 10V, 4 - 20mA |
|
Communication interface |
RS485 interface (MODBUS protocol, RTU mode) |
|
Condition temperature |
0 – 40°C |
|
Relative humidity |
< 80% |
|
IP rate |
IP31 |
|
Weight |
1,1 kg |

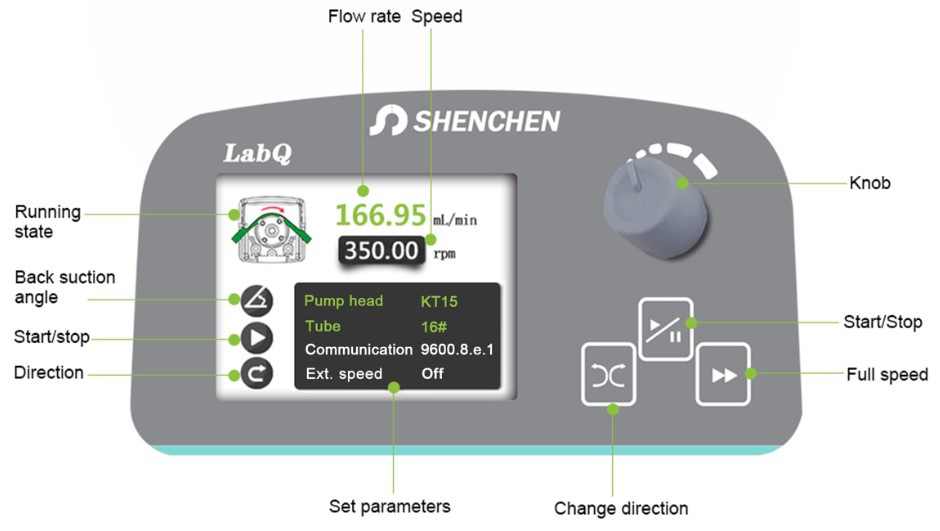

Control panel

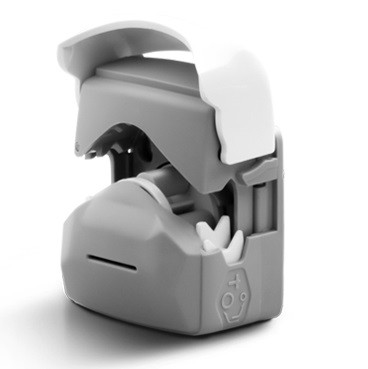

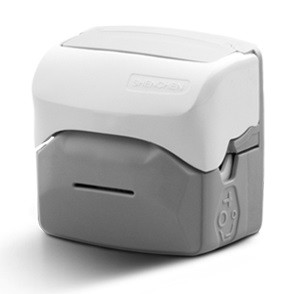

Pump head
Flow range
|
Model |
Pump head |
Tubing size
|
Flow Rate Range (ml/min) |
|
LabQ |
KT15 |
ø0,8 / ø1,6 / ø2,4 / ø3,1 / ø4,8 mm |
0,033 - 326 ml/min |

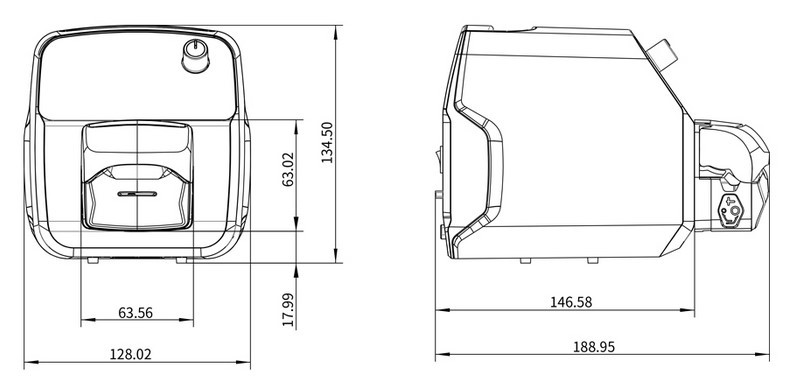

Dimensions in mm:
Scope of delivery:
- Pump
- Power supply unit 230V/50Hz
- Instruction manual
