The HP peristaltic process pump is ideal for industrial applications.

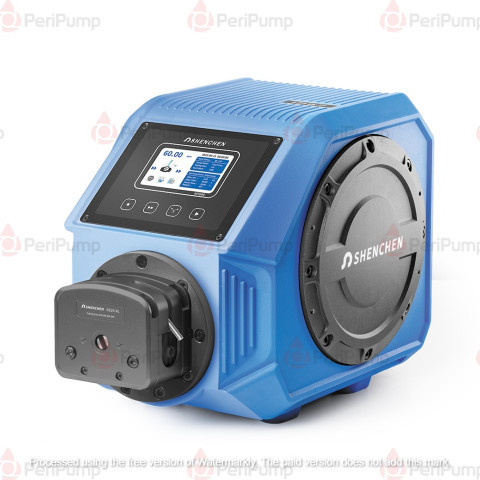

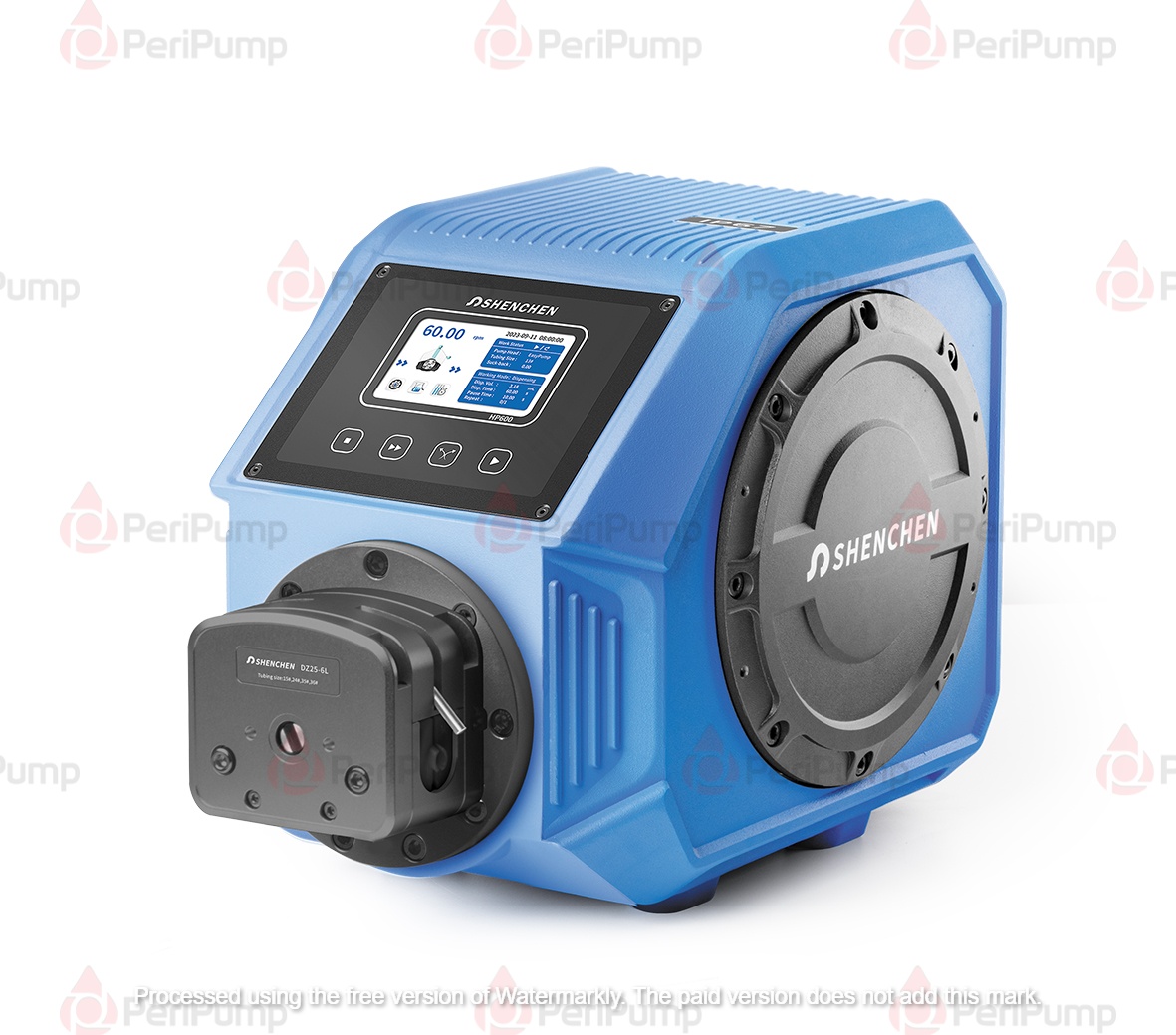

The HP process peristaltic pump is ideal for continuous dosing applications, as well as for accurate dosing. The pump has a compact design with an aluminium housing and is antistatic. The pump can be equipped with different pump heads, depending on the application. Whether you want to pump a liquid from A to B or dose an exact quantity into a container.

The peristaltic pump has low power consumption and is also quiet. All parameters are set via the touch panel and in the event of a sudden power failure, the user settings are saved thanks to a memory backup.

Properties of the HP process pump:
- Industrial applications
- Flow rate from 0.3 ml/min up to 28 l/min
- 3-year warranty

Geeignet zum pumpen von Flüssigkeit von A nach B:

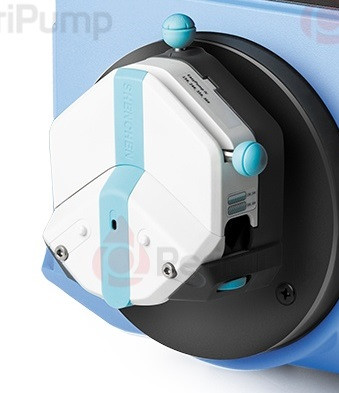

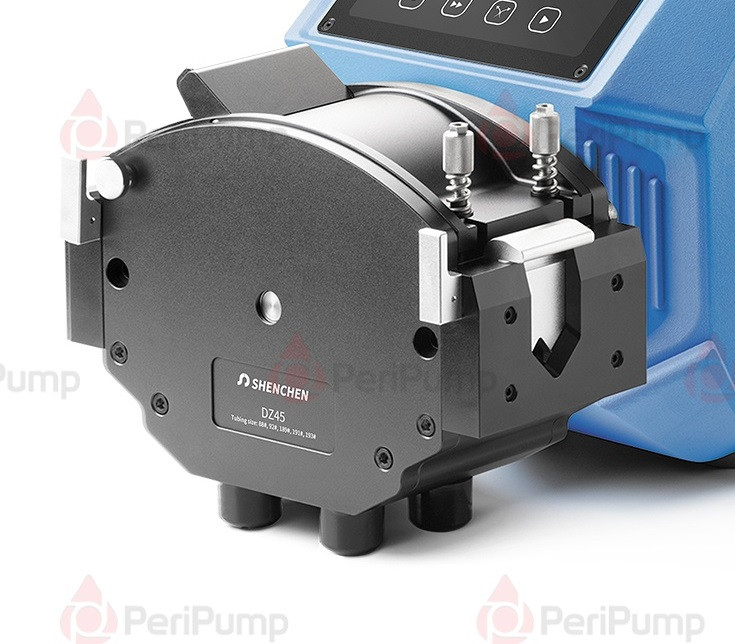

DY45 (bis 28 l/min) EasyPump (bis 3 l/min)

Geeignet zum dosieren von Flüssigkeiten:

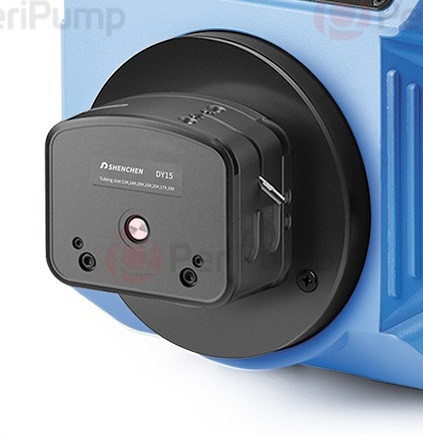

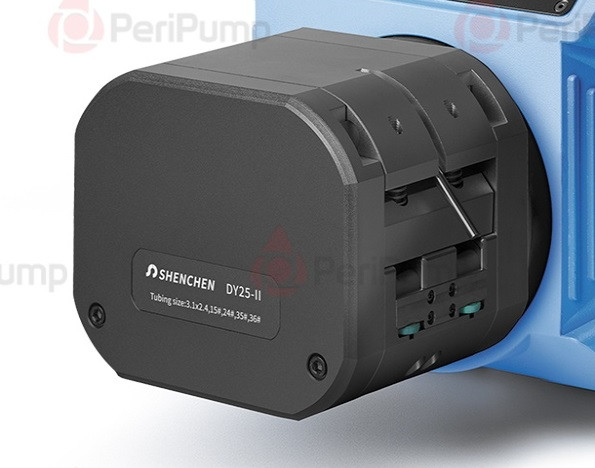

DY25-II (bis 8'000 ml) DY15 (bis 3'000 ml)

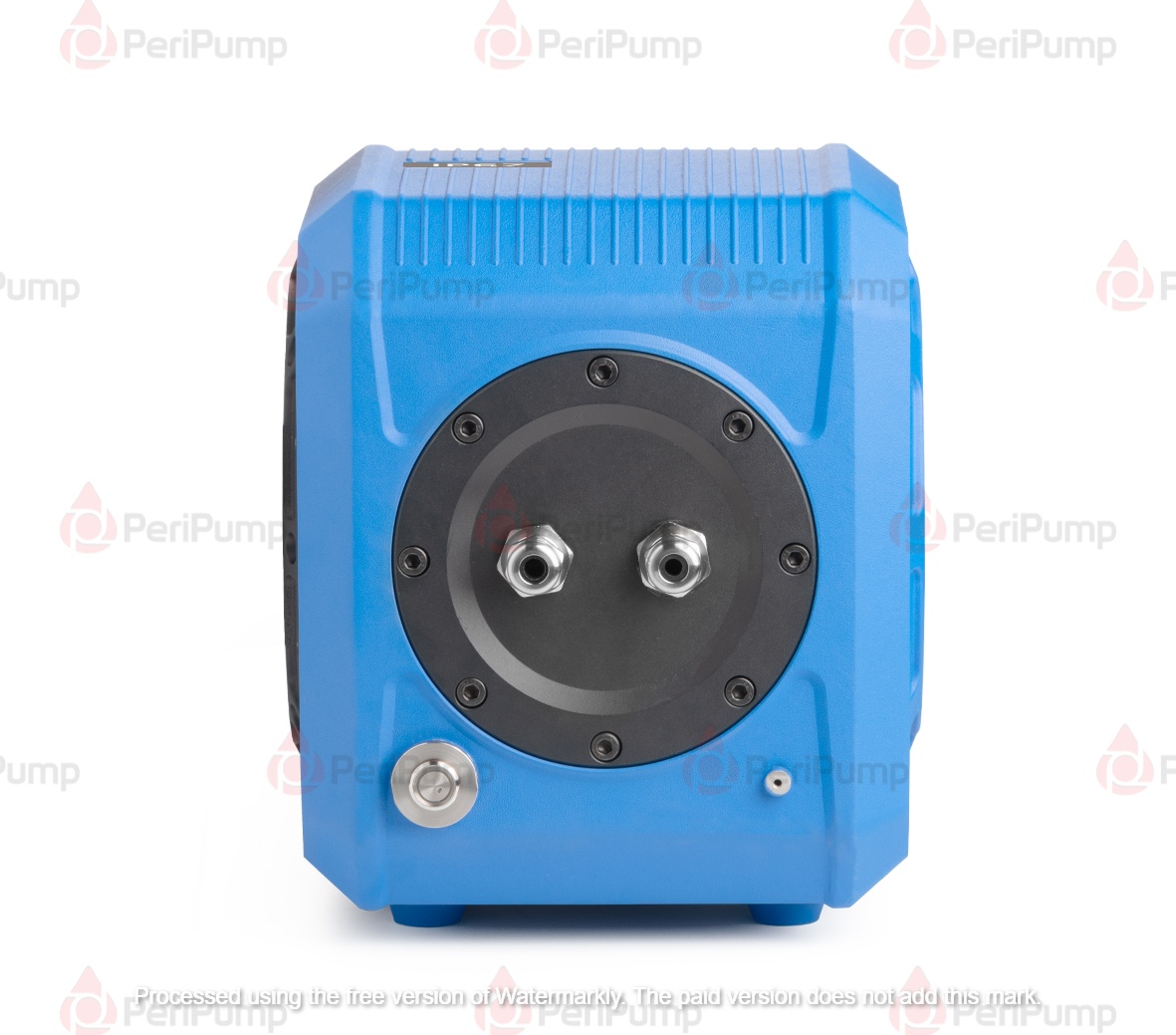

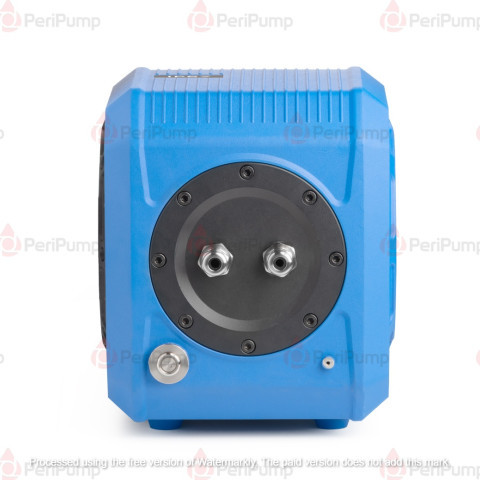

Process peristaltic pump HP
Delivery rate (depending on pump head) 0.3 - 28,000 ml/min
Speed range 0.1 - 300 rpm
Timer function 0.5 - 999 seconds
Operating pressure max. 1.0 bar
Reverse suction 0 - 360°
Umbient temperature 0 - 40°C
Energy consumption 300 W
Caster material
AISI 304
Material housing
Weight 21.5 kg

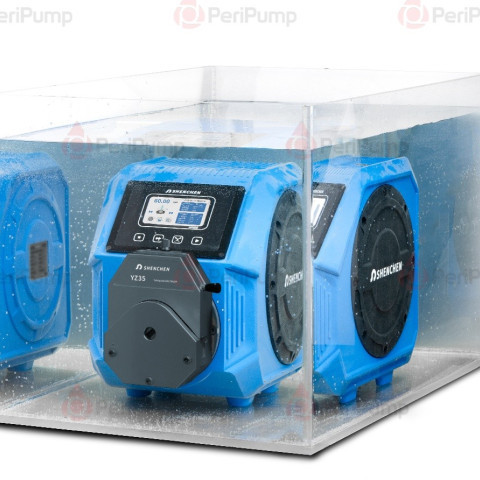

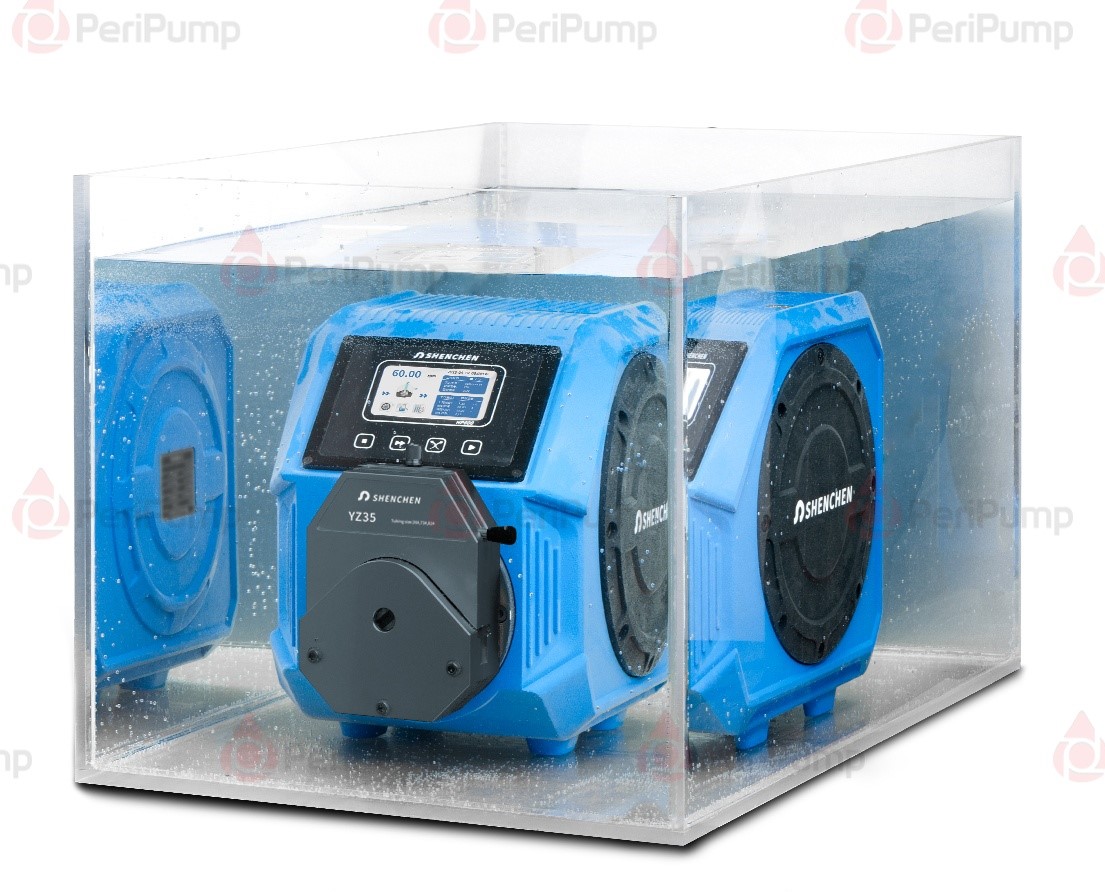

IP protection factor IP67
